Medium Frequency Large Melting Furnace 380v 50 / 60HZ 250KW Rated Power

KGPS-0.35T/250KW Medium Frequency Large Metal Induction Melting Furnace

1. Brief Introduction of Medium Frequency Induction Melting Furnace:
KGPS series Medium Frequency melting induction furnace, aluminum shell mechanical tilt, is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy.It is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.
2. Technical Parameter of Large Induction Melting Furnace:

3. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

4. Advantage of Large Induction Melting Furnace :
1. Frequency-sweep zero voltage start, high success rate, no shock;
2. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
3. Auto phase sequence adaptation, free of synchronization;
4. Good performance in reload staring, auto recovery;
5. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
6. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
7. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine.
5. Part of the melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.

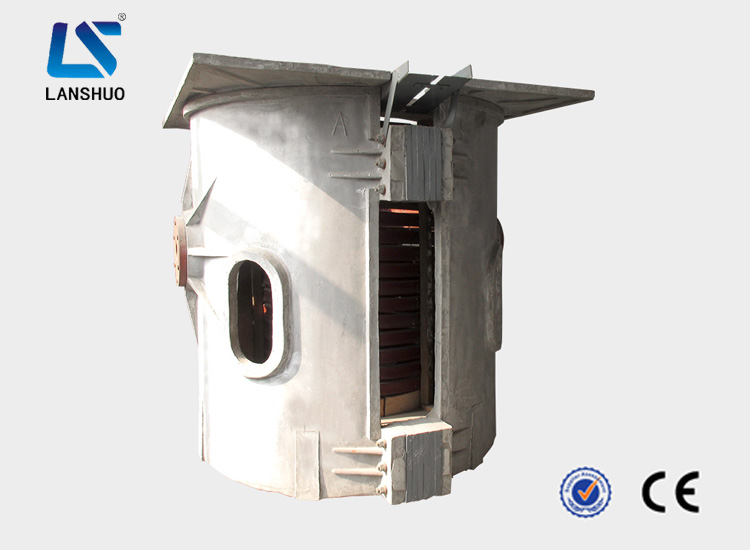

3). Furnace Shell:

Main Power Cabinet	Furnace Shell	Reducer	Water Cooled Cable	Crucible Mould	Induction Coil

industrial metal melting furnace

steel melting induction furnace
