Brand Name : Lanshuo
Model Number : LSW-160
Certification : CE
Place of Origin : China
MOQ : 1 set
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 2000 sets per year
Delivery Time : 5-7 working days after receiving advanced payments
Packaging Details : wooden boxes
Type : Induction Heating Machine
Working Voltage : 380V, 50/60HZ
Max Input Current : 240A
Max Input Power : 160kw
Oscillation Frequency : 18-23KHZ
Duty Cycle : 100%
Cooling Water Flow : 50L/Min,0.2MPa
Weight : 260kg
Dimension : 600*480*1360mm / 800*500*580mm
Color : Optional
1. Feature of IGBT induction heating machine:
1. IGBT inversion technology based LC series circuit .
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.
7. operating and installation easily and safely
8. can subsititue traditional heating methods.
9. Simple operation, flexible feeding and discharging, and high degree of automation.
10. Fast heating speed, high efficiency, less oxide scale
2. Appliaction of induction heating machine:
3. Principle of IGBT induction heating machine:
High frequency induction heating equipment adopts electromagnetic induction principle, making the metal material generate induced current in the circle of the alternating magnetic field to melt metal material. It can also penetrate non-metallic materials, heating the metal parts or all of them quickly.
4. Technical Parameters of LSW-160 IGBT induction heating machine:
Model | LSW-160 |
Working Voltage | 380V, 50/60HZ |
Max input power | 160kw |
Oscillation frequency | 18-23KHZ |
Duty cycle | 100% |
Cooling water flow | 50L/Min,0.2MPa |
Weight | 260kg |
Dimension (L*W*H ) | 600*480*1360mm / 800*500*580mm |
Material | stainless steel |
Color | support customized |
Usage | metal heating,quenching etc |
![]() |

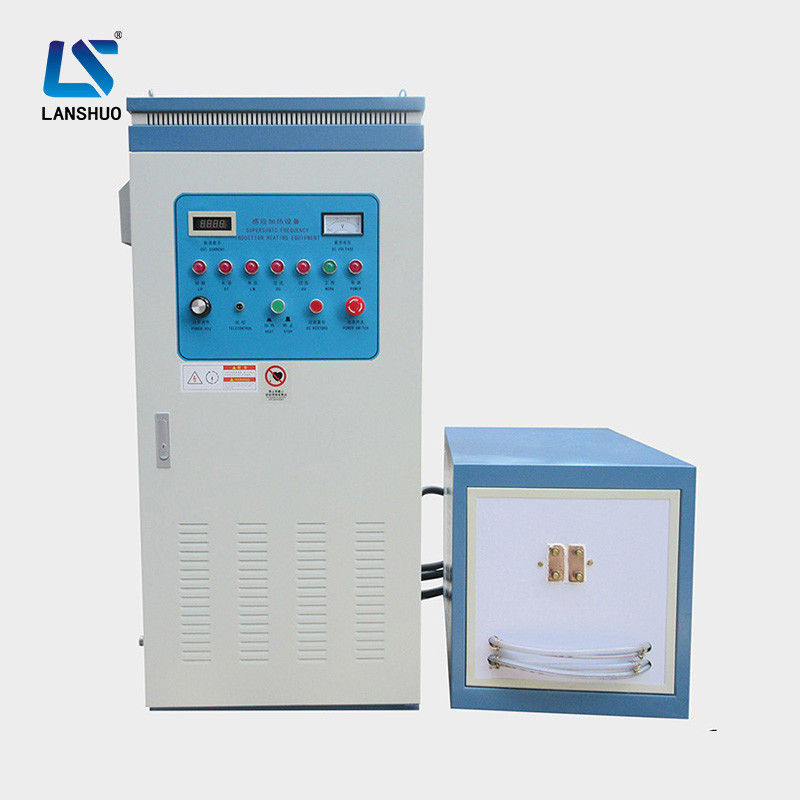

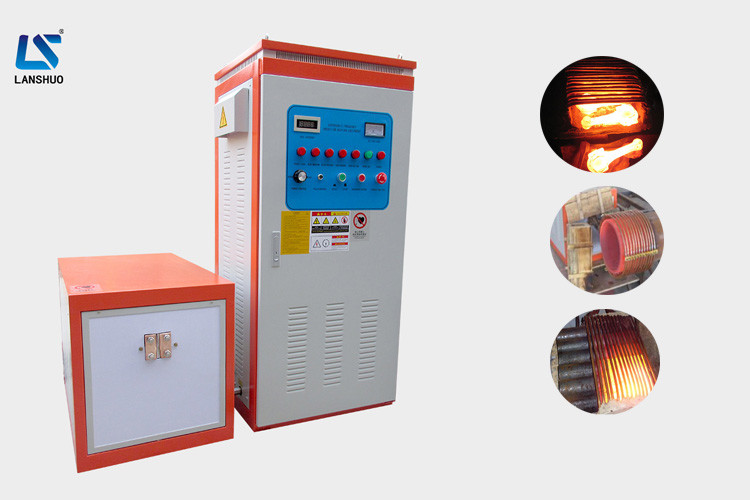

Forging IGBT 160kw Induction Heating Treatment Machine Images |
