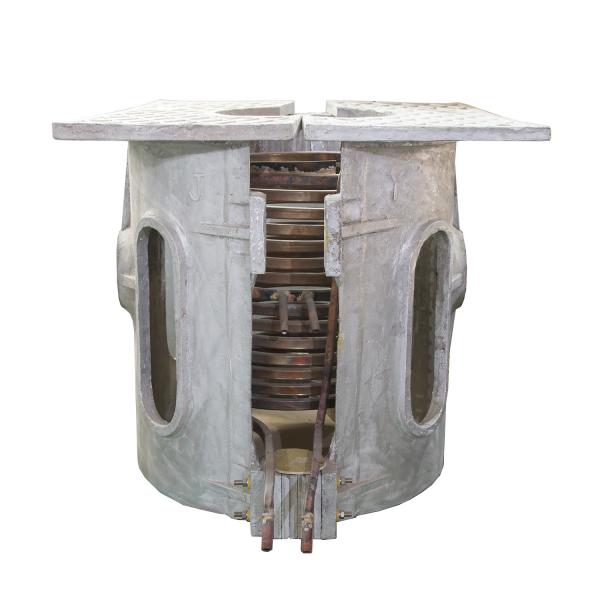

200KW Induction Large Melting Furnace For Aluminium

KGPS-0.25T/200KW Gold Silver Copper Iron Aluminum Silver Induction Melting Furnace

1. Brief Introduction of Medium Frequency Induction Melting Furnace:
KGPS series Medium Frequency melting induction furnace, aluminum shell mechanical tilt, is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy.It is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.

2. Technical Parameter of Large Induction Melting Furnace:

3. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

4. Advantage of Large Induction Melting Furnace :
1) Medium frequency smelting furnace is used for smelting steel, stainless steel, copper, aluminum, gold, silver and other materials.
(2) Medium frequency smelting has good electromagnetic stirring effect, which is beneficial to the uniformity of temperature and structure of smelting metal, to the scum and to the reduction of impurities.
(3) The frequency range is wide, ranging from 1 KHZ to 20 KHZ. The induction coil and matching compensation capacitor can be designed to determine the output frequency, taking into account the factors of melting volume, electromagnetic stirring, heating efficiency and working noise.
(4) Compared with Thyristor Intermediate frequency, energy saving is at least 20%.
(5) The equipment is small in size, light in weight, and the smelting capacity ranges from several kilograms to several hundred kilograms. It has a wide range of choices. It is suitable not only for factory production, but also for small smelting in schools and research institutes.
5. Part of the melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:

Main Power Cabinet	Furnace Shell	Reducer	Water Cooled Cable	Crucible Mould	Induction Coil

6. Feature of Induction Melting Furnace:

1. High melting efficiency, good power saving effect, compact structure and strong overload capacity;
2. The temperature around the furnace is low, the smoke dust is less, and the working environment is good;
3. The operation process is simple and the smelting operation is reliable;
4. Uniform metal composition;
5. The melting temperature rises quickly, the furnace temperature is easy to control, and the production efficiency is high;
6. The furnace has high utilization rate and convenient variety change.

200KW Induction Large Melting Furnace

Aluminium Large Melting Furnace

Mechanical Large Melting Furnace

200KW Induction Large Melting Furnace For Aluminium Images
