160kw medium Frequency steel plate Induction Heating Machine for forging
1. medium frequency steel plate induction heating machine:
Intermediate frequency heating forging equipment can be widely used for forging heating of pipe fittings, steel bars, steel materials, etc. Precision forging of gears, half shaft connecting rods, bearings, etc.), extrusion, hot rolling, heating before shearing, spray heating, hot assembly, and overall quenching, annealing, and tempering of metal materials.
2.. Feature of steel plate induction heating machine:
1. The steel plate heating equipment is a special equipment for heating 12~60mm steel plates. The heating temperature is 1200℃. The heating method is continuous heating. The heating inductor coil is a flat coil and is lined with a furnace lining.
2. Steel plate heating equipment has the characteristics of energy saving, environmental protection, high degree of automation, humanized operation, convenient and simple, safe and reliable, stable equipment, long service life, easy maintenance and so on.
3. Full power output, time control and split type multiple models.
4. The equipment is light, easy to operate, safe and reliable, and avoids the danger of high pressure.
5. The installation is simple, only need to connect the power and water to use, it can be completed in a few minutes.
6. It can be used continuously for 24 hours, high efficiency and energy saving, and it can save two-thirds of the electricity compared with the high frequency of conventional electronic tubes.
7. The automatic control type can adjust the power and time of the heating and heat preservation process, simplifying the operation of workers.
8.The heating speed is fast, the efficiency is high and the heating is even, so there are no missing solders and missing solder joints. 7.The oxidation area is small, and the appearance after welding is exquisite, firm and full.
3. Principle of IGBT induction heating machine:
High frequency induction heating equipment adopts electromagnetic induction principle, making the metal material generate induced current in the circle of the alternating magnetic field to melt metal material. It can also penetrate non-metallic materials, heating the metal parts or all of them quickly.

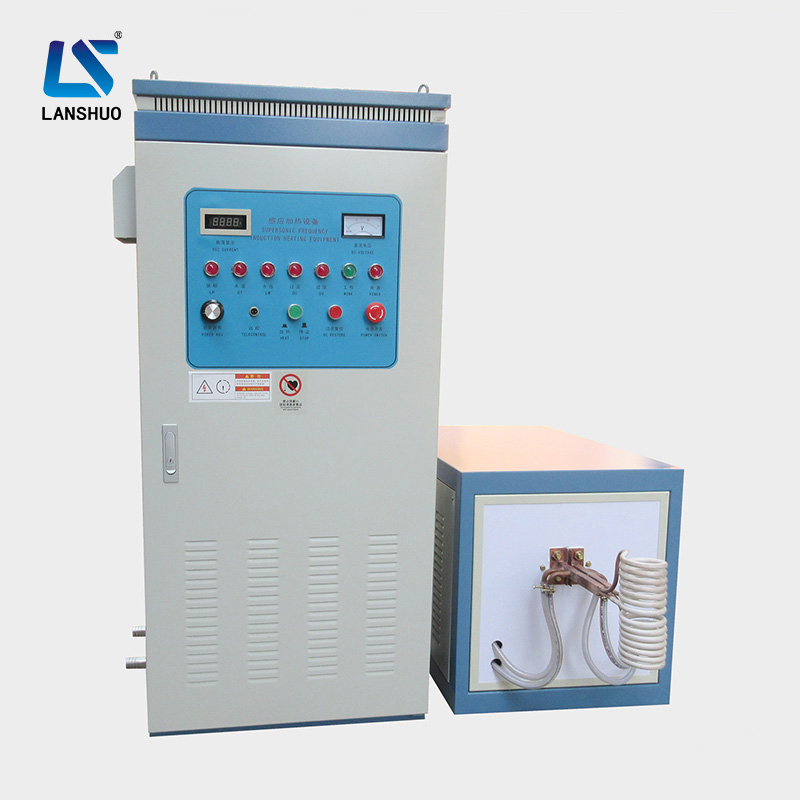

4. Technical Parameters of LSW-160 IGBT induction heating machine:
| Model | LSW-160 |
| Working Voltage | 380V, 50/60HZ |
| Max input power | 160kw |
| Oscillation frequency | 18-23KHZ |
| Duty cycle | 100% |
| Cooling water flow | 50L/Min,0.2MPa |
| Weight | 260kg |
| Dimension (L*W*H ) | 600*480*1360mm / 800*500*580mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating,quenching etc |
The advantages of medium frequency induction heating forging equipment:
1. It has a complete protection system for overvoltage, overcurrent, undervoltage, water shortage, phase loss, voltage limiting, current limiting, etc., thus ensuring the reliability and working stability of the equipment;
2. Highly integrated circuit scheme, debugging and operation are fast, simple and easy to learn;
3. It is easy to realize mechanization, automation and flow production;
4. High efficiency and obvious power saving, 60% power saving than traditional equipment and 20% power saving than thyristor equipment;
5. Especially safe, the output voltage is lower than 36V, avoiding the danger of high voltage electric shock;
6. Small in size and light in weight, it will not take up too much production space, and the working position can be moved at any time to facilitate production needs.
